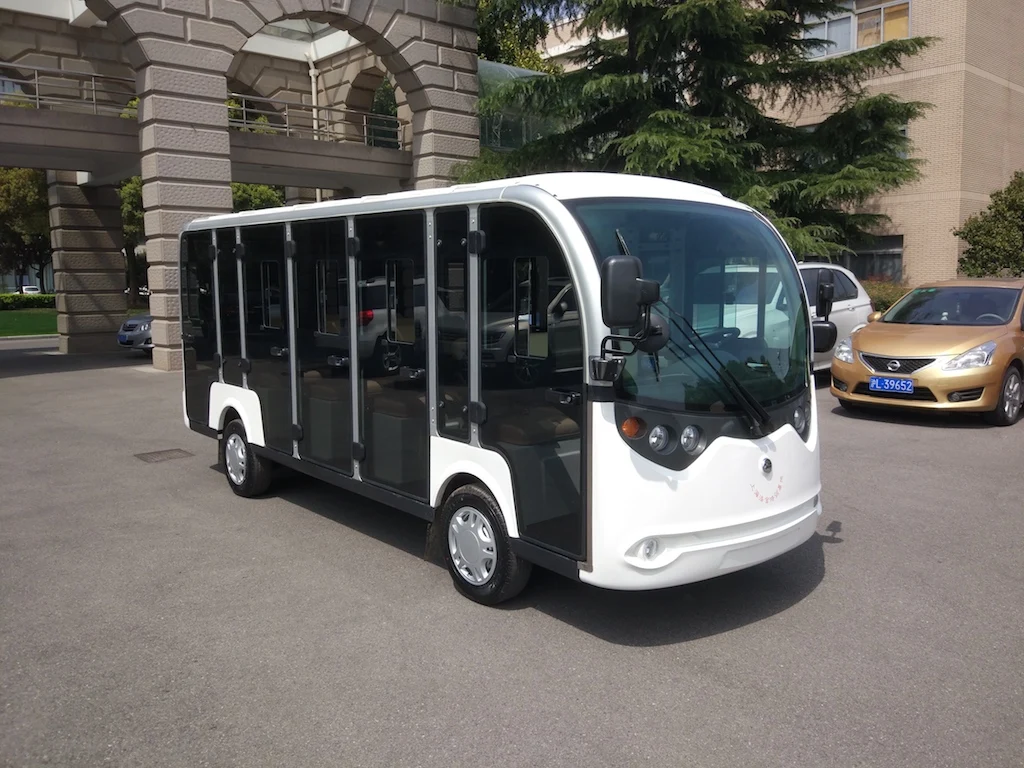

14seats sightseeing buses with Closed Doors

(0)
0 60
3,800,000
In Stock
SKU-G951P1BU2
Most Popular Sightseeing Buses  S14.F with doors.jpg

BATTERIES:

1. 12pcs * 6v Maintenance free batteries (Standard)
2. U.S. TROJAN 6V deep cycle heavy duty lead acid batteries, 10hrs short charge cycle. (Optional)

3. Lithium Batteries which can help the mileage to 150km (Optional)


MOTOR:

1.Premium quality U.S.72V 7.5kw high efficiency shunt wound, separately excitable motor.

2. 6.3kw DC motor




CHARGER:DC 72v 25A fully automatic high frequency intelligent charger.



Motor: Curits 1236 AC motor,  Curtis 1205M DC motor, Japanese To-yo-ta AC controller


STEERING:
Self-Adjusting, permanently lubricated rack& pinion steering with sealed tie-rod ends.


SUSPENSION:
Automotive style fully independent with helical springs over hydraulic strauts, cast aluminum front hubs and permanently lubricated sealed bearings.


TRANS-AXLE:
Direct coupled, splineless with high ratio precision helical gears @16:1 drive ratio. Low noise, minimal wear, low maintenance and long life.


CHASSIS:
Seamless ladder style high tensile tubular steel with anti corrosive full immersion phosphate treatment, electro-deposition epoxy base coating and electrostatically applied laser painted top coat for maximum durability.


OPTIONAL COVERTER REAR SEAT:
Rear seat converts to a spacious cargo deck ideal for carrying passengers luggage.


BREAKS:
Mechanical self-adjusting rear drum brakes


WARRANTY:
One year warranty.

Ground Clearance(mm) 180
Endurance(km) 80-100km
Forward Speed (km/hr) 30-40
Braking distance(m) 3.5
Turning Radius (m) 5.5m
Capability (Full load-Safe/Max%) 30/46
Tires 12"
Rec.Air Pressure (PSI) 34
ENJOY FOLLOWING OPTIONS
One piece organic windshield Deluxe light package (headlight, led brake, signal light)
Sunroof Turning signal
Built in Charger Horn
Reverse Alarm Battery discharge indicator
Regenerative braking system Front Left&Right gloves on dashboard
Front basket Cup holder
Heavy duty front and rear bumper Body color metallic finish
Wheel hub cover Heavy duty wheel and tire
Sunroof color same as body color Wooden grain steering
Company Information

 Guangdong Lvtong New Energy Electric Vehicle Technology Co., LTD., founded in 2004, stands in Hexi Industry Park, Zhengteng Industry Zone, Hongmei, Dongguan, Guangdong,China. With an area of more than 50000 square meters, its capacity is about 2000 units per month. As for our cars, we integrate the advantages of E-Z-GO,CLUB CAR,YAMAHA. Meanwhile adopting advanced German technology, we have researched and developed our own car series designed in accordance with technical standards of imported electric cars.



LVTONG shuttle buses were considered as have the best quality and most competitive price among similar products.

LVTONG Sightseeing Buses in Turkey Expo.
